BSMJ系列自愈式低压并联电容器

BSMJ型自愈式低压并联电容器是专门用来改善标称电压为1kV以下、频率为15Hz～60Hz的交流电力系统的功率因数的电容器单元和电容器组。

BSMJ

整体特点：

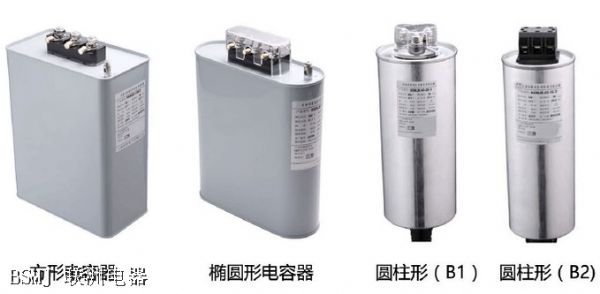

BSMJ型自愈式并联电容器单元多为矩形、椭圆形，也有少量厂家使用圆柱形，外壳均为金属铝外壳，全密封结构，体积小、重量比较重；

它的电性能优异、功率因数损耗小，具有自愈性，使用寿命长，但是电能质量不好，谐波比较多的话就不适合用此类电容器；

该类的容器内部具有内熔丝，温度感应器，机械防爆等装置，安全可靠，价格便宜，更换成本较低，一般电容柜内电容器数量为偶数，比如6、8、10个或更多。

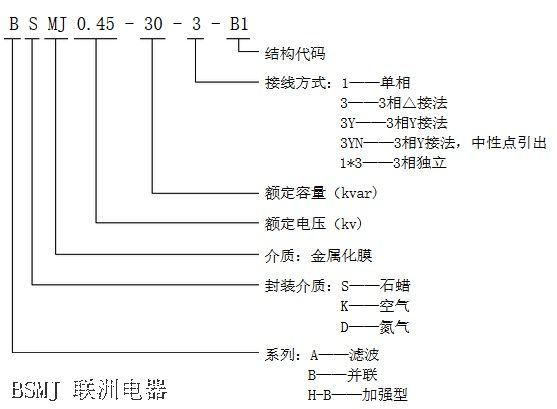

型号定义：

BSMJ

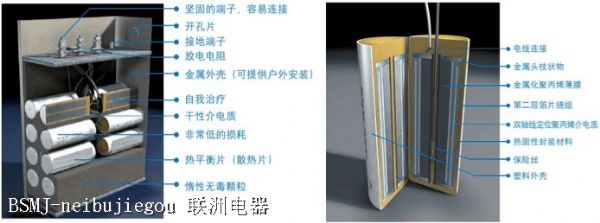

BSMJ-neibujiegou

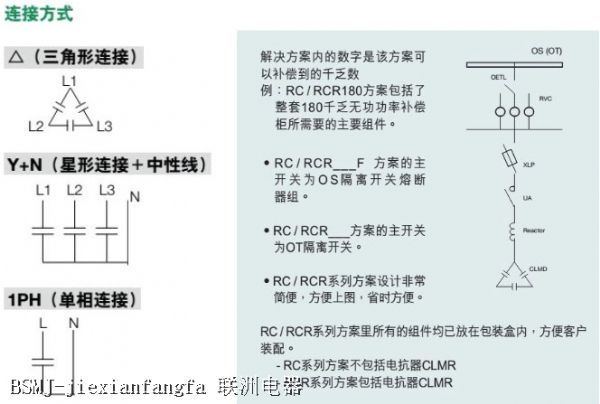

BSMJ-jiexianfangfa

常用型号报价：

编号	型号（点击型号打开询价）
1646013	BSMJ 0.25-10-1
1646960	BSMJ 0.25-12-1
1645647	BSMJ 0.25-15-1
1646337	BSMJ 0.25-16-1
1646410	BSMJ 0.25-18-1
1646306	BSMJ 0.25-20-1
1646883	BSMJ 0.25-25-1
1645865	BSMJ 0.25-4-1
1645626	BSMJ 0.25-5-1
1646076	BSMJ 0.25-6-1
1646108	BSMJ 0.25-7.5-1
1646786	BSMJ 0.25-8-1
1644615	BSMJ 0.4-10-1
1644363	BSMJ 0.4-10-3
1645829	BSMJ 0.4-12-1
1644178	BSMJ 0.4-12-3
1646772	BSMJ 0.4-15-1
1645630	BSMJ 0.4-15-3
1646634	BSMJ 0.4-16-1
1645758	BSMJ 0.4-16-3
1644275	BSMJ 0.4-18-1
1644056	BSMJ 0.4-18-3
1645732	BSMJ 0.4-20-1
1645913	BSMJ 0.4-20-3
1645650	BSMJ 0.4-22-1
1645427	BSMJ 0.4-22-3
1646363	BSMJ 0.4-25-1
1644302	BSMJ 0.4-25-3
1643686	BSMJ 0.4-30-1
1645425	BSMJ 0.4-30-3
1644671	BSMJ 0.45-10-3
1645103	BSMJ 0.45-12-1
1644728	BSMJ 0.45-12-3
1646303	BSMJ 0.45-15-1
1644330	BSMJ 0.45-15-3
1646824	BSMJ 0.45-16-1
1644934	BSMJ 0.45-16-3
1643745	BSMJ 0.45-18-1
1644932	BSMJ 0.45-18-3
1646686	BSMJ 0.45-20-1
1644492	BSMJ 0.45-20-3
1645156	BSMJ 0.45-22-1
1644826	BSMJ 0.45-22-3
1645700	BSMJ 0.45-25-1
1645643	BSMJ 0.45-25-3
1644720	BSMJ 0.4-5-3
1644690	BSMJ 0.45-30-1
1644457	BSMJ 0.45-30-3
1645042	BSMJ 0.45-35-1
1646747	BSMJ 0.45-35-3
1645364	BSMJ 0.45-40-3
1646635	BSMJ 0.4-7.5-1
1643763	BSMJ 0.4-7.5-3
1645885	BSMJ 0.4-8-1
1646324	BSMJ 0.48-10-1
1646367	BSMJ 0.48-10-3
1644427	BSMJ 0.48-12-1
1645197	BSMJ 0.48-12-3
1645194	BSMJ 0.48-15-1
1646764	BSMJ 0.48-15-3
1646248	BSMJ 0.48-16-1
1644946	BSMJ 0.48-16-3
1644664	BSMJ 0.48-18-1
1645869	BSMJ 0.48-18-3
1643716	BSMJ 0.48-20-1
1645684	BSMJ 0.48-20-3
1646971	BSMJ 0.48-22-1
1646462	BSMJ 0.48-22-3
1646958	BSMJ 0.48-25-1
1645080	BSMJ 0.48-25-3
1645651	BSMJ 0.4-8-3
1643853	BSMJ 0.48-30-1
1645258	BSMJ 0.48-30-3
1646269	BSMJ 0.48-35-1
1645126	BSMJ 0.48-35-3
1644176	BSMJ 0.48-40-3
1645437	BSMJ 0.48-7.5-1
1646267	BSMJ 0.48-7.5-3
1644234	BSMJ 0.48-8-1
1646953	BSMJ 0.48-8-3
1644244	BSMJ 0.5-20-3
1645943	BSMJ 0.525-10-1
1644055	BSMJ 0.525-10-3
1645016	BSMJ 0.525-12-1
1644857	BSMJ 0.525-12-3
1646977	BSMJ 0.525-15-1
1646421	BSMJ 0.525-15-3
1645686	BSMJ 0.525-16-1
1644086	BSMJ 0.525-16-3
1646585	BSMJ 0.525-18-1
1646637	BSMJ 0.525-18-3
1645519	BSMJ 0.525-20-1
1644005	BSMJ 0.525-20-3
1646194	BSMJ 0.525-22-1
1643913	BSMJ 0.525-22-3
1646351	BSMJ 0.525-25-1
1644306	BSMJ 0.525-25-3
1644428	BSMJ 0.525-30-1
1645675	BSMJ 0.525-30-3
1645332	BSMJ 0.525-35-3
1645423	BSMJ 0.525-5-3
1644522	BSMJ 0.525-7.5-1
1646173	BSMJ 0.525-7.5-3
1645823	BSMJ 0.525-8-1
1645837	BSMJ 0.525-8-3
1645280	BSMJ0.15-15-1
1645820	BSMJ0.15-15-3Y
1645697	BSMJ0.15-20-1
1647011	BSMJ0.16-40-3
1646530	BSMJ0.18-30-1
1644963	BSMJ0.21 16-3
1646716	BSMJ0.21 22-1
1645767	BSMJ0.22-10-3
1645777	BSMJ0.22-14-3
1644953	BSMJ0.22-15-3
1644358	BSMJ0.22-9-3YN
1643929	BSMJ0.23 2.5-1
1644990	BSMJ0.23 5-1
1646596	BSMJ0.23 10-1
1645678	BSMJ0.23 10-3
1645975	BSMJ0.23 12-1
1645544	BSMJ0.23 15-1
1646265	BSMJ0.23 15-3
1643956	BSMJ0.23 2-1
1646818	BSMJ0.23 30-1
1646604	BSMJ0.23 3-1
1646294	BSMJ0.23 4-1
1644968	BSMJ0.23 5-1
1644519	BSMJ0.23 6-1
1645201	BSMJ0.23 8-1
1646012	BSMJ0.23 8-3
1646860	BSMJ0.23 10-1
1646681	BSMJ0.23 10-3
1646411	BSMJ0.23 10-3YN
1646955	BSMJ0.23 1-1
1644266	BSMJ0.23 12-1
1644255	BSMJ0.23 12-3YN
1644781	BSMJ0.23 15-1
1645709	BSMJ0.23 15-3
1646985	BSMJ0.23 15-3YN
1646746	BSMJ0.23 16-1
1646520	BSMJ0.23 16-3YN
1644063	BSMJ0.23 18-1
1645562	BSMJ0.23 18-3YN
1644189	BSMJ0.23 20-1
1645553	BSMJ0.23 20-3
1646920	BSMJ0.23 20-3YN
1644787	BSMJ0.23 2-1
1643982	BSMJ0.23 24-3YN
1644226	BSMJ0.23 25-3YN
1643972	BSMJ0.23 30-3
1644750	BSMJ0.23 30-3YN
1644677	BSMJ0.23 3-1
1644639	BSMJ0.23 3-3YN
1646206	BSMJ0.23 4-1
1645616	BSMJ0.23 5-1
1644239	BSMJ0.23 5-3YN
1643870	BSMJ0.23 6-1
1645591	BSMJ0.23 6-3YN
1646946	BSMJ0.23 7.5-1
1645752	BSMJ0.23 7.5-3YN
1643812	BSMJ0.23 8-1
1646767	BSMJ0.23 8-3YN
1644493	BSMJ0.23 9-1
1643775	BSMJ0.23√3-10-3
1644889	BSMJ0.23√3-12-3
1645290	BSMJ0.23√3-14-3
1644383	BSMJ0.23√3-15-3
1645317	BSMJ0.23√3-16-3
1644130	BSMJ0.23√3-18-3
1643695	BSMJ0.23√3-20-3
1644813	BSMJ0.23√3-22-3
1644298	BSMJ0.23√3-2-3
1643807	BSMJ0.23√3-24-3
1645413	BSMJ0.23√3-25-3
1645236	BSMJ0.23√3-30-3
1644295	BSMJ0.23√3-3-3
1644496	BSMJ0.23√3-4-3
1645420	BSMJ0.23√3-5-3
1646395	BSMJ0.23√3-6-3
1644730	BSMJ0.23√3-7.5-3
1645622	BSMJ0.23√3-8-3
1645867	BSMJ0.23-10-1
1644700	BSMJ0.23-10-1 A
1644989	BSMJ0.23-10-3
1646556	BSMJ0.23-10-3 A
1645305	BSMJ0.23-10-3Y
1643848	BSMJ0.23-10-3YN
1646073	BSMJ0.23-1-1
1645618	BSMJ0.23-12-1
1645701	BSMJ0.23-12-1 A
1643927	BSMJ0.23-12-3
1645955	BSMJ0.23-12-3 A
1646311	BSMJ0.23-12-3Y
1646865	BSMJ0.23-12-3YN
1645027	BSMJ0.23-13.5-1
1646422	BSMJ0.23-1-3YN
1644337	BSMJ0.23-14-1
1644925	BSMJ0.23-14-1 B
1644614	BSMJ0.23-14-3 B
